Model: BW-PH01

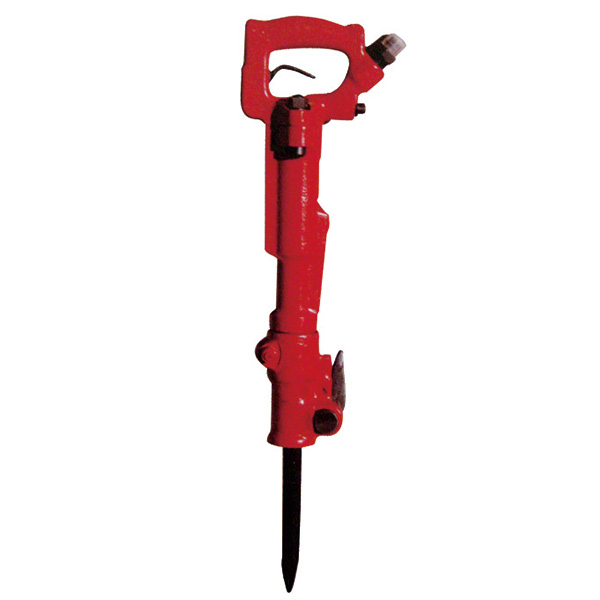

Decription: 26mm x 80mm Shank Round Pick Hammer-Heavy Duty Loc
Product Details:
Large Diameter,Smooth Stroke Piston
Efficient Valve chest for low maintenance rates
Drop-Forged cylinder
Chisel retainer spring included;
Large Diameter,Smooth Stroke Piston
Efficient Valve chest for low maintenance rates
Drop-Forged cylinder
Chisel retainer spring included;
Model | Blows Per Minute(BPM) | AVERAGE AIR CONSUMPTION(25%) SCFM | Impact Energy | Sound dBA(pressure/Power) | Piston Stroke | EXHAUST | LENGTH | WEIGHT | AIR PRESSURE | AIR INLET | ||||||
J/M | Kg-cm/cm | Ft-lb/in | In. | m/m | m/m | in | kgs | lbs | psi | kg/c㎡ | ||||||
BW-PH01 | 2,000 | 35 | 43 | 421 | 0.81 | N/A | 6.1 | 155 | Handle | 520 | 20.5 | 10 | 22 | 90 | 6.3 | 3/4 |
